CHARACTER OF NET TYPE PNEUMATIC FENDER
Pneumatic Fenders with Protective Netting
Pneumatic fenders with protective netting are well-suited for ship-to-ship operations, ship-to-dock berthing, and applications in harsh marine environments, especially involving large vessels.
The protective net helps safeguard the fender body from punctures and abrasions, extending the service life of the fender. Netting can be customized according to client requirements, such as fiber rope nets or chain nets. The most commonly used option is the tire-chain net, with choices of aircraft tires or truck tires.
While aircraft tires provide enhanced protection, they also add considerable weight to the fender. This should be taken into account, especially in cases where lifting capacity is limited.
Additionally , the use of protective netting does not significantly affect the energy absorption performance of the fender.
Net type Pneumatic fenders consist of
- Protective net
- An outer rubber body
- Synthetic tire-cord layers
- An air-tight inner rubber bod
- Flange areas including safety valve* (if applicable) and bead ring
- End shackles
- End swivels

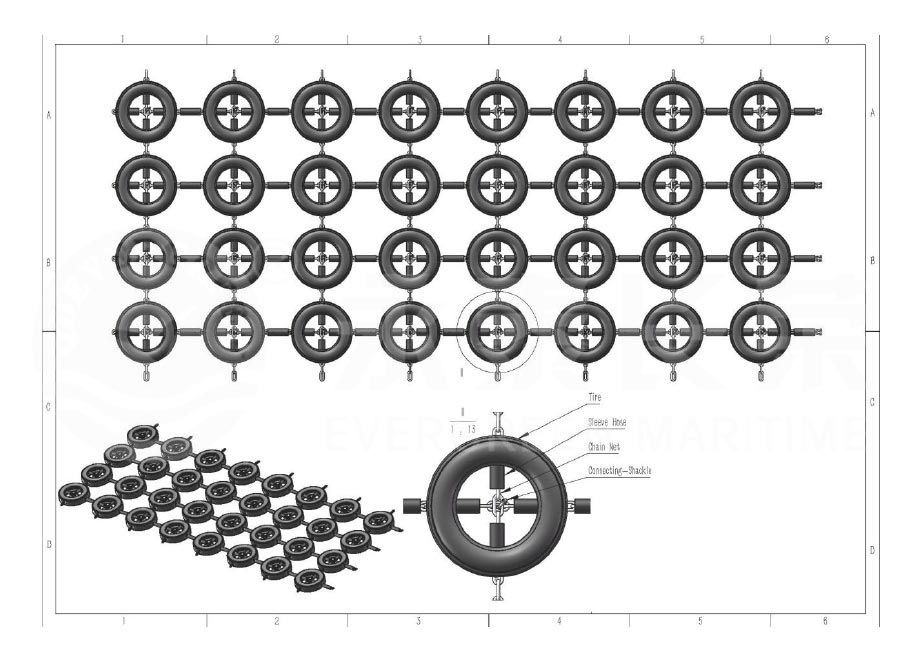

Chain-tire-net of of Evergreen pneumatic fender

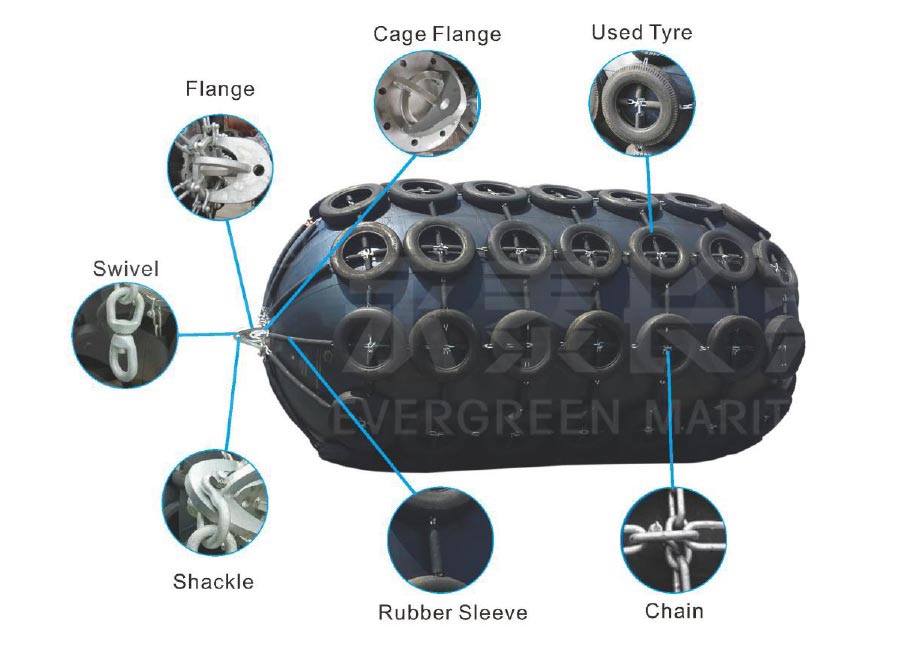

Structure of Evergreen pneumatic fender CTN type
Performance of P50 pneumatic fenders CTN type of typical sizes
| Nominal Size Diameter x Length | Initial Internal pressure | Guaranteed Energy Absorption (GEA) | Reaction Force at GEA | Hull Pressure at GEA | Safety Valve Setting Pressure | Testing Pressure |
| (mm × mm) | (kPa) | (kNm) | (kN) | (kPa) | (kPa) | (kPa) |
| 700 × 1500 | 50 | 17 | 137 | 135 | – | 200 |
| 1000 × 2000 | 50 | 45 | 257 | 132 | – | 200 |
| 1500 × 3000 | 50 | 153 | 579 | 132 | – | 200 |
| 2500 × 4000 | 50 | 663 | 1381 | 137 | 175 | 250 |
| 3300 × 4500 | 50 | 1175 | 1884 | 130 | 175 | 250 |
Full-size pneumatic fender performance data available on request.
EVERGREEN PNEUMATIC FENDER- Engineered for Impact. Built to Last.
Global Reach
Used in 20+ countries worldwide, ensuring safe and efficient port operations.
Industry Choice
Trusted by 40+ leading shipping companies for STS, berthing, and offshore applications.
Certified Reliability
Certified by major international classification societies, fully compliant with ISO 17357 standards.
Proven Performance
High energy absorption, low reaction force, and long service life — delivering unmatched value.
How to select pneumatic fenders for your projects
The Selection of Pneumatic Rubber Fenders can be confirmed as per the maximum energy absorption of specific condition. We should calculate and compare the requirements for the energy of the following condition: the Kinetic energy when the ship berthing or after berthing; the energy of relative motion of ship to ship or ship to wharf.

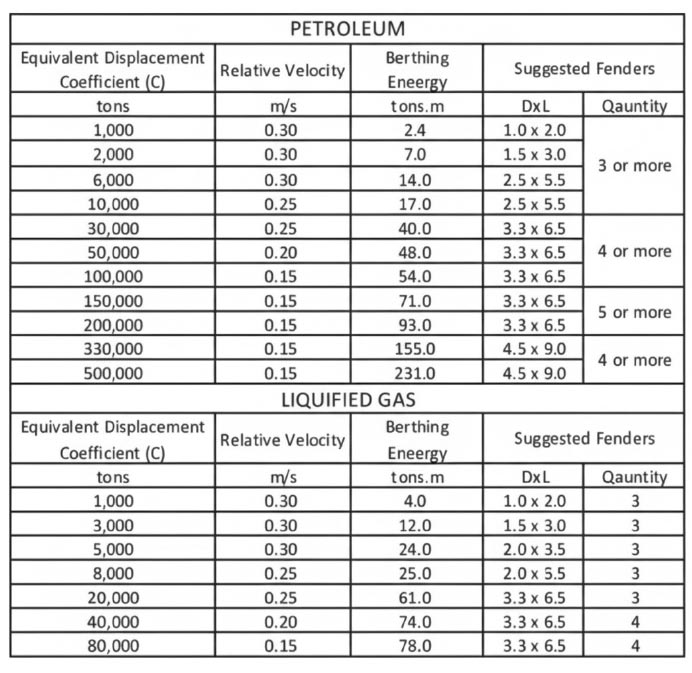

People can make the quick reference as per the OCIMF Table, to do the fender selection tentatively.
Consult Experts: Seek guidance from Evergreen fender experts who can provide advice on quality, suitability, and customized solutions.
